Home » Products » THERMO 93 (flashing/lips)
Return
THERMO 93 (flashing/lips)

Total 93mm frame thickness, triple layers of seal, triple glass with double layers of low-e glass and multiple lock points, all of those make the window high porfermance. The u-value of the window sample can reach 0.84. For aluminum passive house window, the price is more competitive than alu-wood passive house window. It looks simple fashion and a new manifestation of modern life style of leisure.

Performance
Air tightness (L/S- m2)
Inf 0.07/Exf 0.06
watertight performance Resistance
510Pa
U-Factor(W/m2-K)
0.93
SHGC
0.17
Negative Design Pressure
±3360Pa

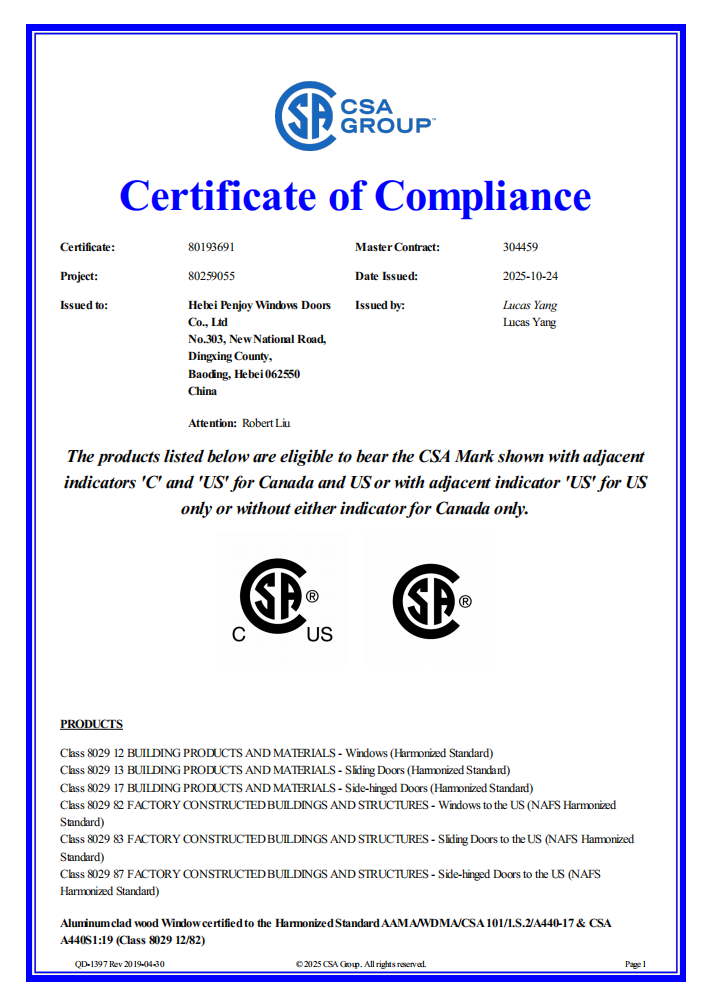

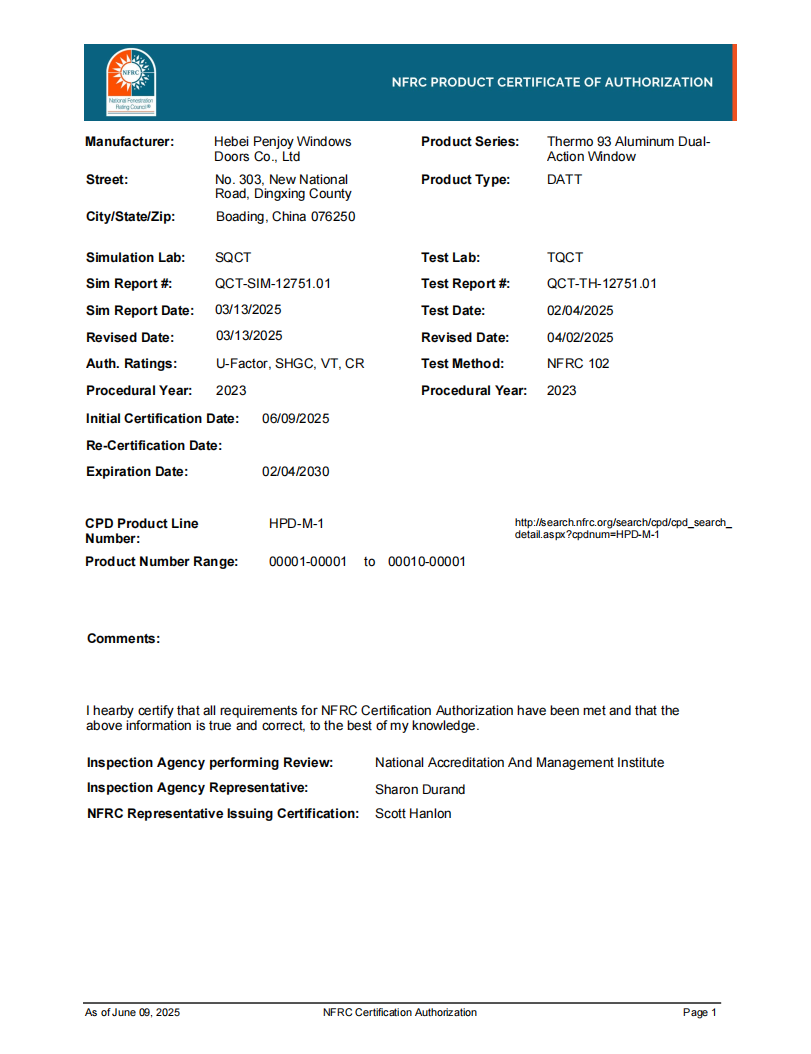

Professoional Certificates
Certificates

80+
PRODUCT TEST REPORT
American standard
Australian standard
Canadian standard
New Zealand standard
Other countries’ highest standard certification.

Video

Request a quick quote and product catalog.

Talk to An Expert
Become Our Dealer

Get Free Sample Pack & Price List in 24h

Color selection
EXTERIОR(Standard)
  • JN310O
  • JN300O
  • JL324O
  • JM382O
Cross-Sectional View

Recommended size of open cash

Sidelite & Transoms
  • in-swing windows
  • Tilt &turn window
  • Tilt & turn window(real mullion)
  • Tilt only window
Glass Options
DECORATIVE AND SPECIALTY GLASS
TEMPERED GLASS

Tempered glass is a type of reinforced glass with 3-5 times the bending strength and 5-10 times the impact strength of ordinary glass. Our glass meets SGCC (USA) and AS2208 (Australia) standards. Its high load capacity makes it durable, and if broken, it shatters into small, harmless fragments for enhanced safety.

LOW-E GLASS

Low-E glass blocks infrared light from outside while retaining indoor heating and cooling energy, significantly improving energy efficiency and reducing HVAC costs. Our NFRC-certified Low-E options meet various SHGC and U-factor requirements for optimal performance.

WARM EDGE SPACERS

The spacer between glazing panes significantly impacts performance. Aluminum spacers, the standard choice, conduct heat 4,000-5,000 times more than insulation, causing edge condensation even in double glazing. Upgrading to warm edge spacers eliminates this weak point, improving thermal efficiency and preventing window crying.

LAMINATED GLASS

Laminated glass consists of two glass plies bonded with interlayers, creating a strong, uniform layer that holds together even when broken. Available in various thicknesses, it can incorporate coatings for insulation or low emissions. For specialized needs, PVB or SGP interlayers provide enhanced protection, including hurricane and bullet resistance.

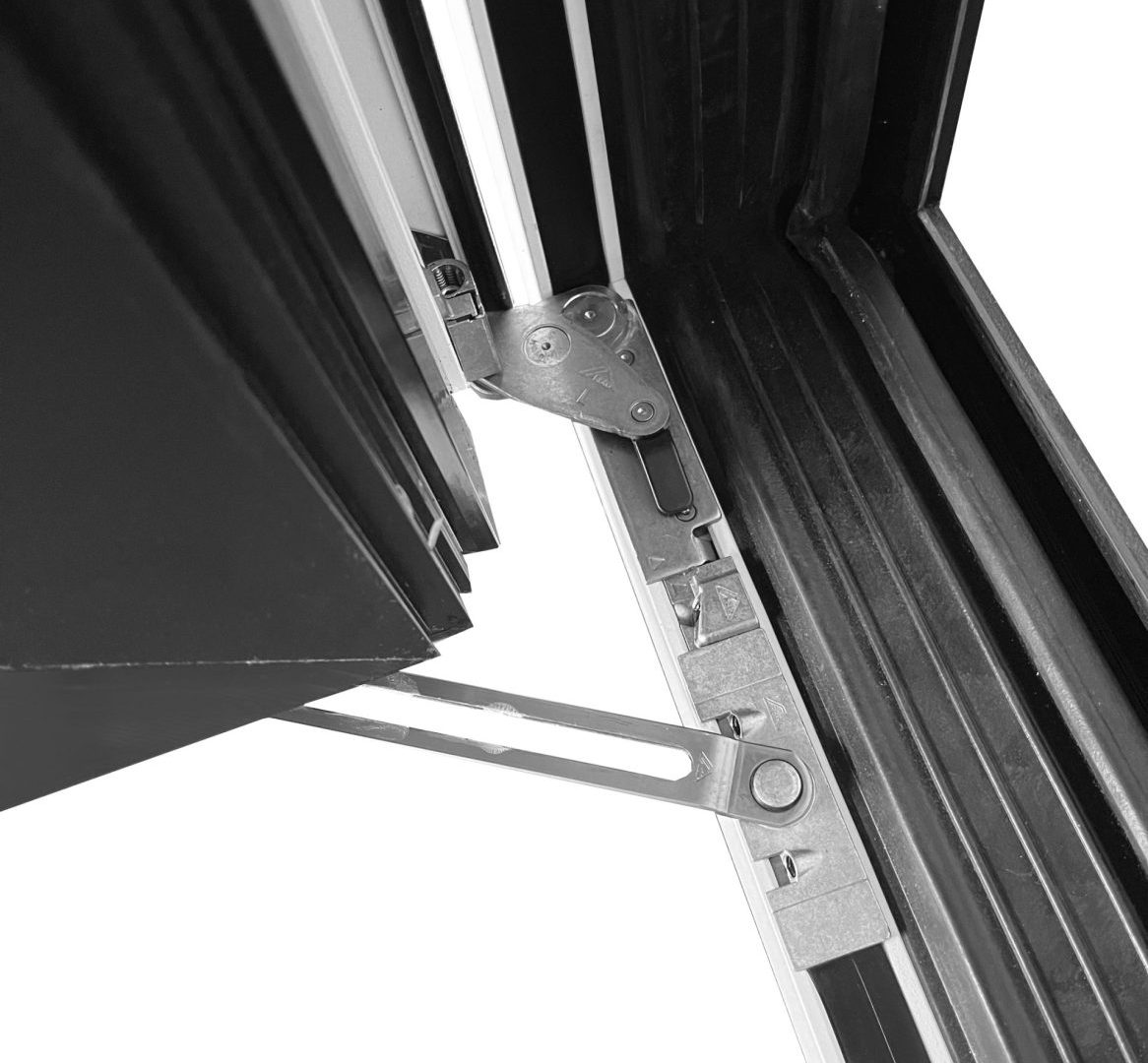

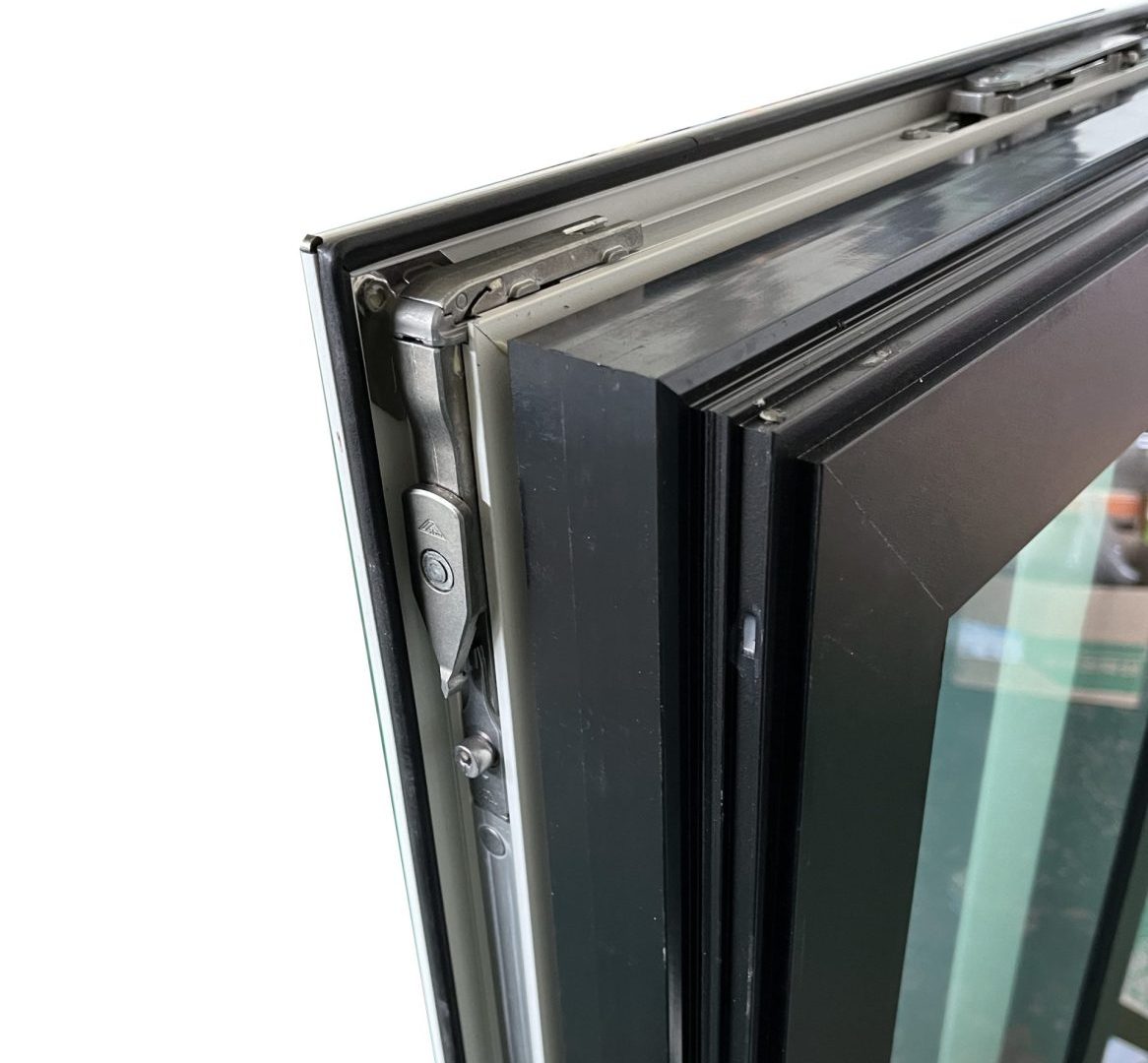

Hardware

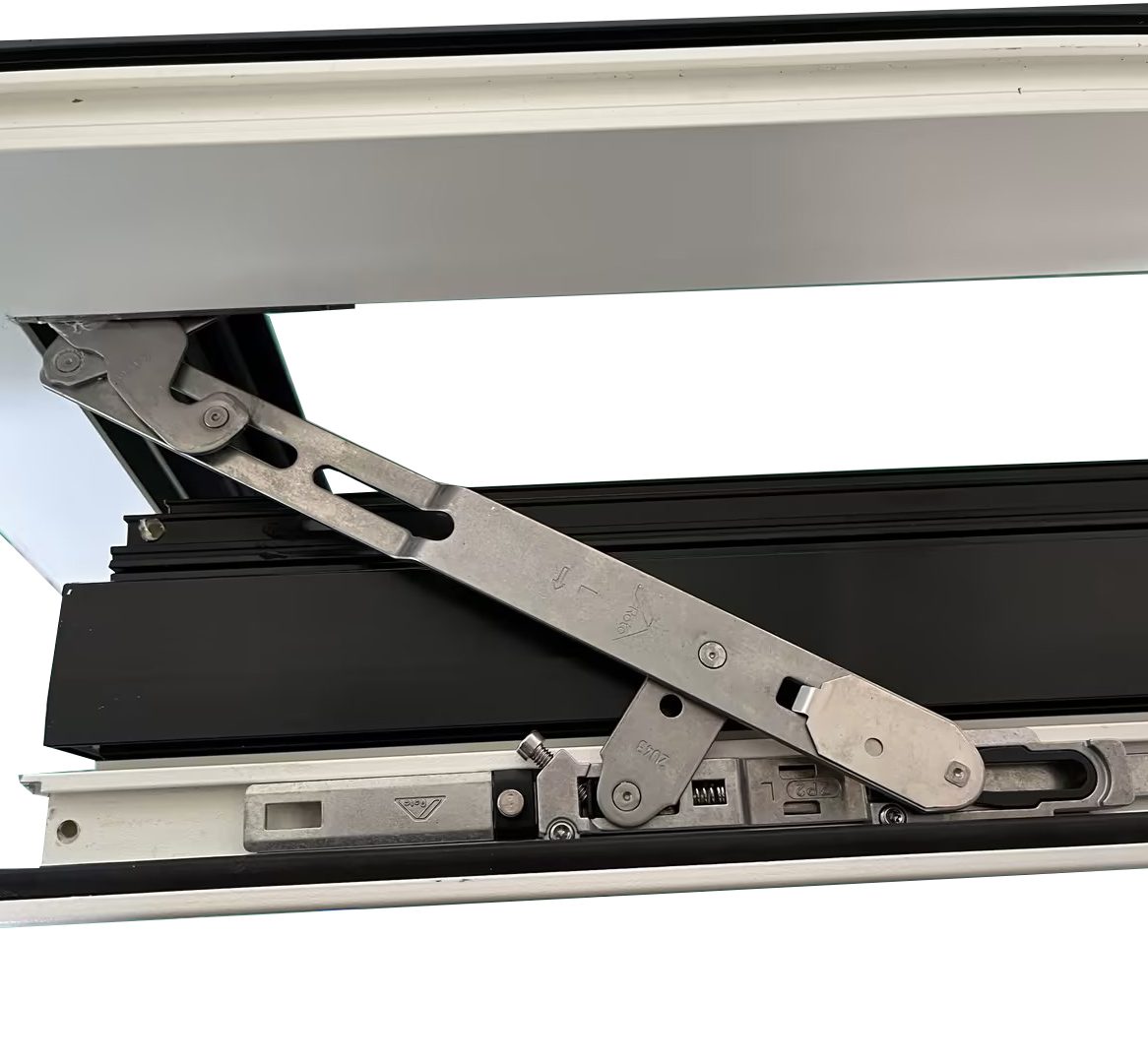

  • Roto
  • Roto
  • Roto
Handle
  • ROTO Classic Model
  • ROTO
  • Hoppe
  • Handle with key
Download
file name
language
format
size
download
THTHERMO 93 ALUMINUM PASSIVE HOUSE SYSTEM TILT AND TURN WINDOW
EN
PDF
1.57MB
FAQs
  • Q
    What is "Tilt & Turn"? What are the practical benefits of this opening method?

    Tilt & Turn is a window type that seamlessly integrates two opening modes. In the tilt position, the window vents from the top, offering advantages such as enhanced safety, protection from rain, and preventing children from bumping into it. The swing position (or full open position), on the other hand, allows for thorough and easy cleaning.

  • Q
    What surface treatment options do you offer?

    We employ powder coating using paints from AkzoNobel, a Global Fortune 500 company. All coatings comply with the AAMA (or Qualicoat) standard and are tested in the USA.

    We also offer PVDF coating (Fluorocarbon coating). This coating provides excellent adhesion and a brilliant gloss finish, demonstrating outstanding load-bearing capacity and superior corrosion resistance.

  • Q
    What glazing options are available? Is customization supported?

    We offer highly flexible glazing solutions that can be customized to meet the energy efficiency, safety, and acoustic insulation requirements of your project.

  • Q
    Do you provide product installation guidance or technical documentation?

    Yes. We can provide installation videos. Should you have any questions, please do not hesitate to contact us. We can also offer remote technical guidance for your team via online meetings.

  • Q
    We are concerned about supply chain stability. What are your minimum order quantity and lead time?

    Our Minimum Order Quantity (MOQ) is as low as one square meter. For standard products, the typical lead time is 30-40 days. For large-volume orders or customized products with special requirements, the timeline may be extended. The exact delivery date depends on the order’s complexity, and we will communicate and confirm it with you promptly. You have our full commitment to on-time delivery.
